Tooling
library

Die Sizes

.

With over 4,500 dies of various shapes and sizes in our extensive library, we’ve gathered a snapshot of some more common sizes of our square, circular and oval dies. Our rectangle die collection is in the hundreds, so we are sure to have the size you need.

.

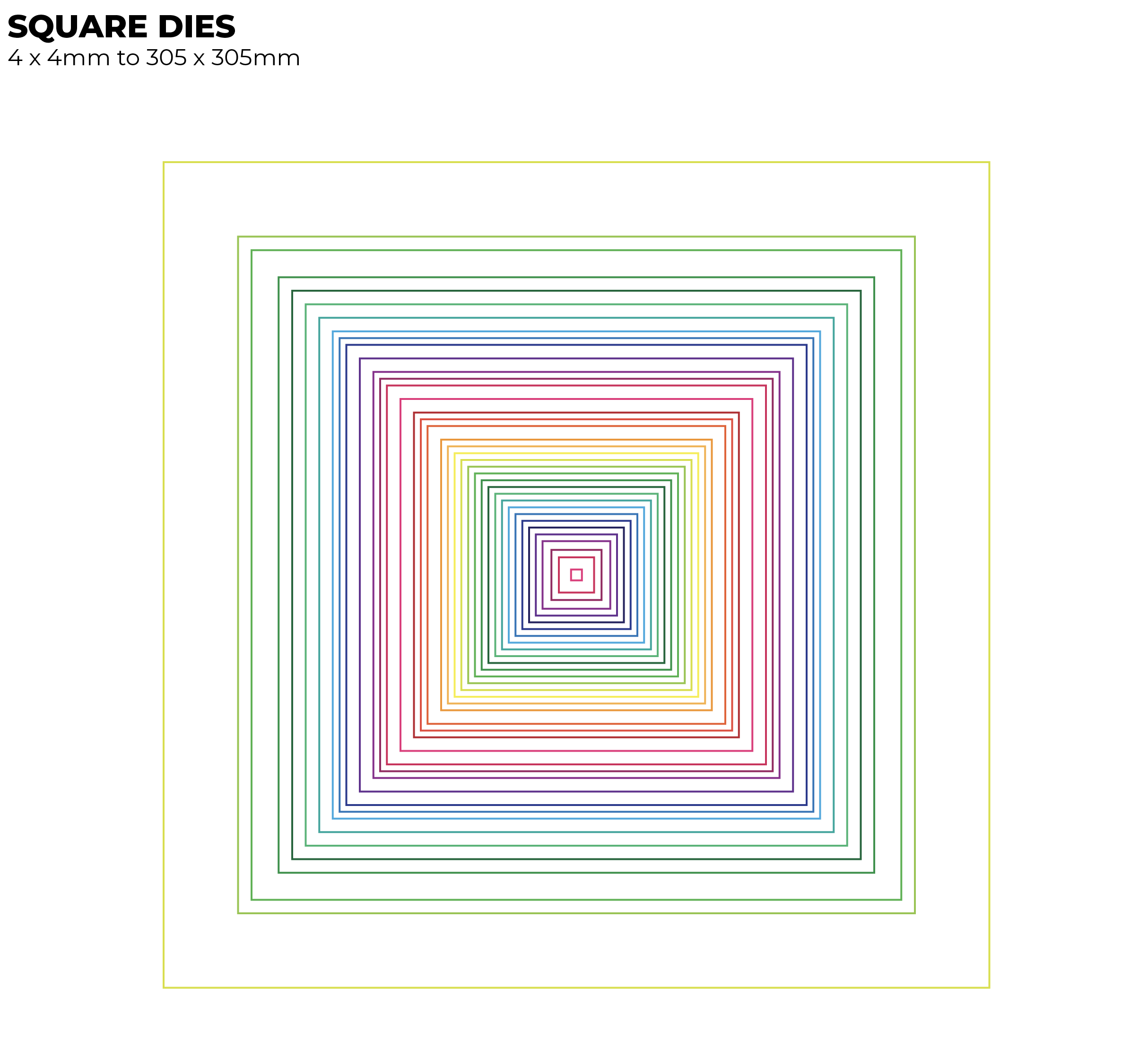

HEIGHT (mm) WIDTH(mm)
4 4
13 13
18.5 18.5
20 20
25 25
28 28
30 30
35 35
40 40
45 45
46 46
48 48
50 50
53 53
56 56
57 57
60 60
65 65
70 70
75 75
78 78
80 80
82 82
85 85
88 88
89 89
90 90
91 91
93 93
95 95
97 97
98 98
100 100
102.5 102.5
110 110
115 115
120 120
130 130
138 138
140 140
145 145
149 149
150 150
160 160
165 165
170 170
175 175
180 180
190 190
200 200
210 210
220 220
240 240
250 250
305 305

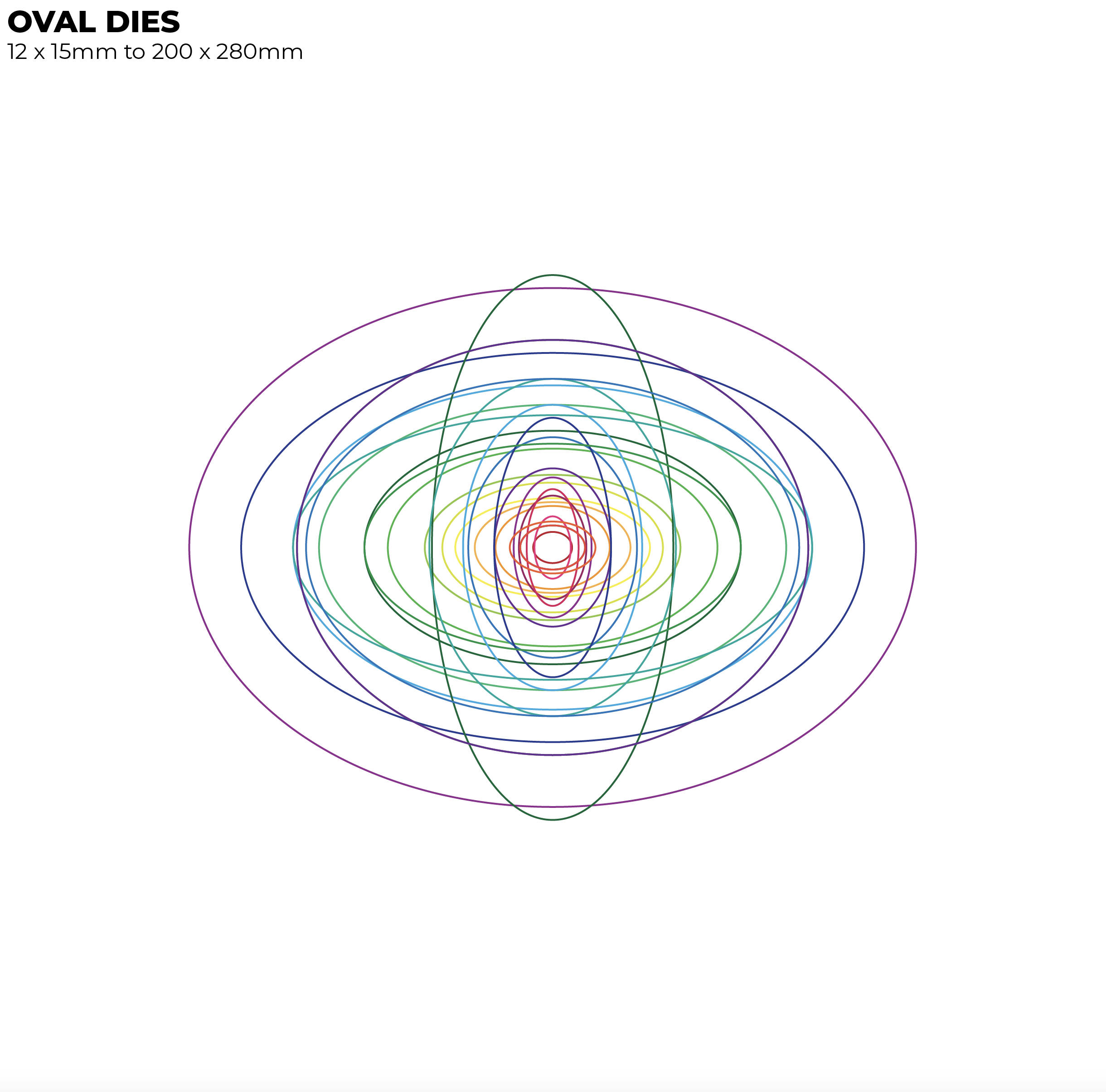

HEIGHT (mm) WIDTH (mm)
12 15
17 25
25 80
32 44
35 60
38 75
40 26
40 65
40 76
45 20
50 85
54 30
55 28
56 98.5
61 45
61 40
76.2 127
85 65
89 99.5
90 145
100 45
110 180
125 200
150 240
160 197
200 280
210 93
24 14
50 70
130 95
17 25
80 145
110 69
89 99.5
40 20
45 25
20 33
55 20
102 200
125 200
102 200
14 26
45 70
65 30
40 98
160 197
41 54
35 60
86 43
50 25
63 48
44 72
24 14
130 190
30 45

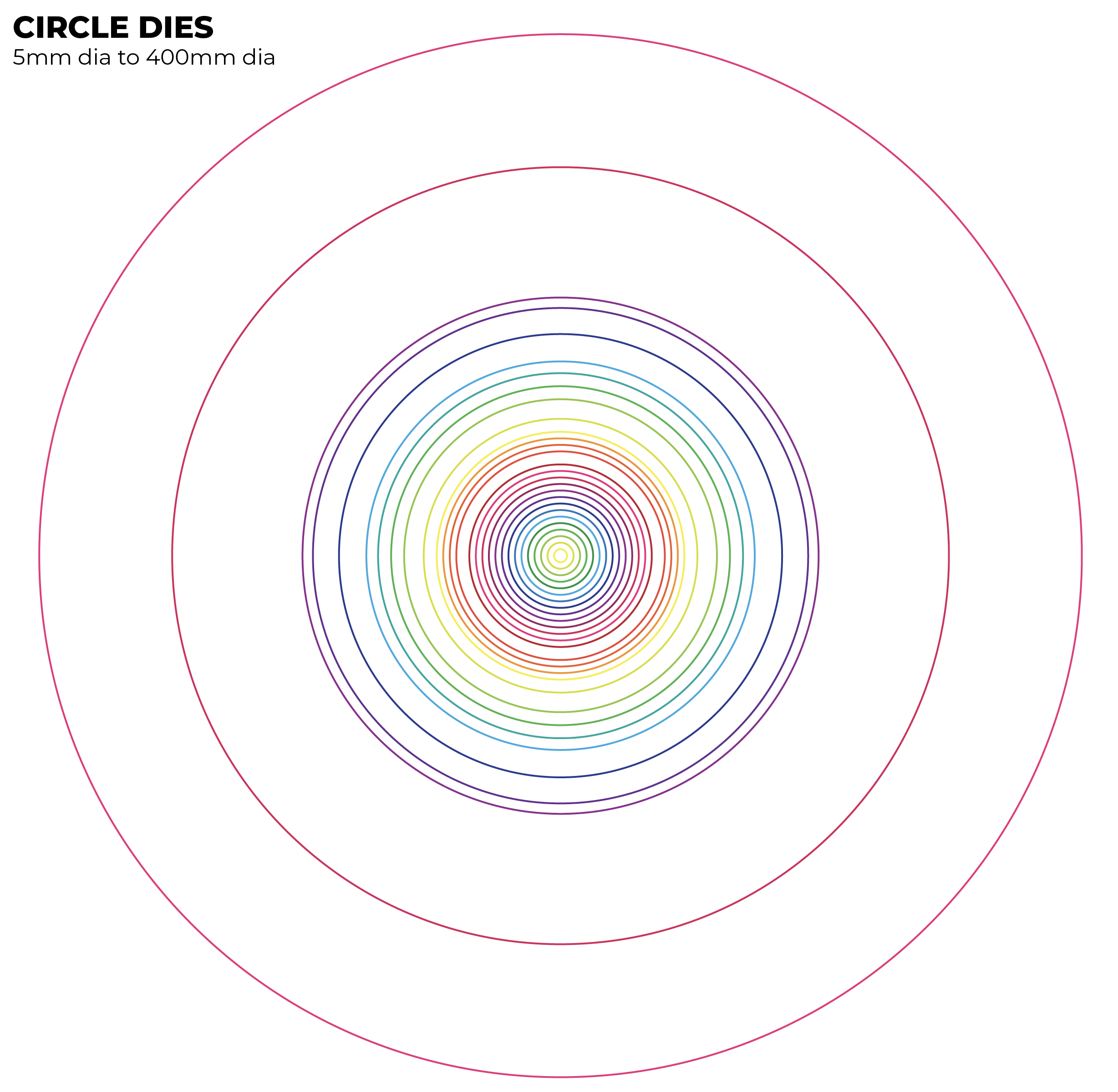

HEIGHT (mm) WIDTH(mm)
5 5
10 10
12.7 12.7
14 14
15 15
19 19
20 20
22 22
23 23
25 25
27 27
28 28
30 30
32 32
35 35
38 38
40 40
44 44
45 45
50 50
52 52
55 55
56 56
57 57
58 58
60 60
63 63
65 65
70 70
73 73
77 77
78 78
80 80
85 85
88 88
90 90
95 95
99 99
105 105
120 120
123 123
128 128
130 130
140 140
149 149
170 170
190 190
198 198
298 298
400 400

Can’t see the size your after? Have an odd shaped label? We have thousands more dies in our library and can have custom shapes made just for your project.
